With almost 60 years of industry experience that has produced revolutionary results, Cole answers the stringent demands of nearly all commercial, aerospace, and military applications. Into each switch produced, Cole combines imaginative engineering, quality construction, and exceptional customer service.
Rotary Switches – 1150 Series
Ideal for applications where space is at a premium and tough environmental requirements are needed, the 1150 Series is 0.320 inches in diameter, rated at 25,000 operational cycles and meets all applicable MIL-S-3786 requirements.
1150 Series – Standard
Subminiature Precision Rotary Switches. 0.320 inches in diameter rated at 25,000 operational cycles.
A subminiature precision rotary selector switch, the SERIES 1150 is:
0.320 inches in diameter
rated at 25,000 operational cycles.
It has been engineered to meet all applicable requirements of MIL-S-3786.
The basic series 1150 is available as a 1 pole, 2-10 positions or a 2 pole, 2-5 position switch. It is a non-shorting switch with 36° indexing. It has PC terminals and shaft seals for contaminant free operation.
The SERIES 1150 is well suited for avionics, communications, test equipment and command and control applications where space is at a premium and tough environmental reliability requirements are imposed.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine good current switching capabilities with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent manufacturing processes, inspection and testing requirements.
The A1150 and B1150 are designed for the addition of a panel seal. These switches are perfect for miniature switch applications where contamination control is a must and harsh environments are expected. They are ideal when long life and precision in extreme conditions are necessary.
The A1150 uses the same body as the standard 1150 but with a smaller shaft and ferrule to allow a panel seal. The B1150 uses the standard 1150 shaft and ferrule sizes with a larger body diameter to allow a panel seal.
| Continuous (Non-Switching) Current Capacity |
3 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
4 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
The Cole A1150 Rotary Switch has the same body diameter of the standard 1150, but the body length is longer, 0.360 inches.
- Its smaller shaft and ferrule are allowed to put a panel seal.
- The A1150 Rotary Switch is rated at 25,000 operational cycles.
- It has been engineered to meet all applicable requirements of MIL-S-3786.
The A1150 Rotary Switch is rated at 25,000 operational cycles. It has been engineered to meet all applicable requirements of MIL-S-3786. The A1150 Rotary Switch is perfect for miniature switch applications where contamination control is a must and harsh environments are expected.
The A1150 Rotary Switch allows for Long Life, Precision Switching, with the smallest possible footprint, while withstanding harsh conditions.
A1150 Series – Smaller Ferule
.320″ Body Dia., with Panel Seal and Small Body Subminiature Precision Rotary Switches
A subminiature precision rotary selector switch, the SERIES 1150 is:
- 0.320 inches in diameter
- rated at 25,000 operational cycles.
- It has been engineered to meet all applicable requirements of MIL-S-3786.
- The basic series 1150 is available as a 1 pole, 2-10 positions or a 2 pole, 2-5 position switch. It is a non-shorting switch with 36° indexing. It has PC terminals and shaft seals for contaminant free operation.
The SERIES 1150 is well suited for avionics, communications, test equipment and command and control applications where space is at a premium and tough environmental reliability requirements are imposed.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine good current switching capabilities with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent manufacturing processes, inspection and testing requirements.
The A1150 and B1150 are designed for the addition of a panel seal. These switches are perfect for miniature switch applications where contamination control is a must and harsh environments are expected. They are ideal when long life and precision in extreme conditions are necessary.
The A1150 uses the same body as the standard 1150 but with a smaller shaft and ferrule to allow a panel seal. The B1150 uses the standard 1150 shaft and ferrule sizes with a larger body diameter to allow a panel seal.
| Continuous (Non-Switching) Current Capacity |
3 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
4 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
The Cole A1150 Rotary Switch has the same body diameter of the standard 1150, but the body length is longer, 0.360 inches.
- Its smaller shaft and ferrule are allowed to put a panel seal.
- The A1150 Rotary Switch is rated at 25,000 operational cycles.
- It has been engineered to meet all applicable requirements of MIL-S-3786.
The A1150 Rotary Switch is rated at 25,000 operational cycles. It has been engineered to meet all applicable requirements of MIL-S-3786. The A1150 Rotary Switch is perfect for miniature switch applications where contamination control is a must and harsh environments are expected.
The A1150 Rotary Switch allows for Long Life, Precision Switching, with the smallest possible footprint, while withstanding harsh conditions.
B1150 Series – Larger Body Diameter
.375″ Body Diameter with Panel Seal, Added Shoulder on Housing Subminiature Precision Rotary Switches
The Cole B1150 Rotary Switch uses the standard 1150 shaft and ferrule sizes with a larger body diameter, 0.375 inches to allow a panel seal to be used.
- The body length of B1150 is longer than the standard 1150, 0.350 inches.
- The B1150 Rotary Switch is rated at 25,000 operational cycles.
- It has been engineered to meet all applicable requirements of MIL-S-3786.
The B1150 Rotary Switch is perfect for miniature switch applications where contamination control is a must and harsh environments are expected.
The B1150 Rotary Switch allows for Long Life, Precision Switching, with the standard 1150 shaft and ferrule size, while withstanding harsh conditions.
| Continuous (Non-Switching) Current Capacity |
3 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.1 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
4 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
The Cole B1150 Rotary Switch uses the standard 1150 shaft and ferrule sizes with a larger body diameter, 0.375 inches to allow a panel seal to be used.
- The body length of B1150 is longer than the standard 1150, 0.350 inches.
- The B1150 Rotary Switch is rated at 25,000 operational cycles.
- It has been engineered to meet all applicable requirements of MIL-S-3786.
The B1150 Rotary Switch is perfect for miniature switch applications where contamination control is a must and harsh environments are expected.
The B1150 Rotary Switch allows for Long Life, Precision Switching, with the standard 1150 shaft and ferrule size, while withstanding harsh conditions.
Rotary Switches – 1250 Series
Ideal for applications where space is at a premium and tough environmental requirements are needed, the 1250 Series is 0.350 inches in diameter, rated at 30,000 operational cycles and meets all applicable MIL-S-3786 requirements.
1250 Series
A subminiature precision rotary selector switch, the SERIES 1250 is 0.350 inches in diameter and rated at 30,000 operational cycles.
A subminiature precision rotary selector switch, the SERIES 1250 is 0.350 inches in diameter and rated at 30,000 operational cycles. It has been engineered to meet all applicable requirements of MIL-S-3786.
- The basic series 1250 is available as a 1 pole, 1-8 position or a 2 pole, 2-4 position switch.
- It is a non-shorting switch with 45 and 60 degree indexing.
- It has PC terminals and shaft seal for contaminant-free operation.
The series 1250 is ideal for avionics, communications, test equipment and command and control applications where space is limited and strict environmental reliability requirements are needed.
Superior construction, using materials that meet the strictest standards, ensure these subminiature switches provide excellent current switching capacity and constant low contact resistance. Rigorous inspection, testing requirements, and procedures ensure long life and high reliability.
The Cole series 1250 switch provides the ultimate mechanical and electrical reliability with its unique design
| Continuous (Non-Switching) Current Capacity |
1 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.25 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.125 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.075 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
1 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| Medium Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | Shaft Seal |
| RFI/EMI Tested | YES |
| Shaft Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 60° | 6 | 1 or 2 |
A subminiature precision rotary selector switch, the SERIES 1250 is 0.350 inches in diameter and rated at 30,000 operational cycles. It has been engineered to meet all applicable requirements of MIL-S-3786.
- The basic series 1250 is available as a 1 pole, 1-8 position or a 2 pole, 2-4 position switch.
- It is a non-shorting switch with 45 and 60 degree indexing.
- It has PC terminals and shaft seal for contaminant-free operation.
The series 1250 is ideal for avionics, communications, test equipment and command and control applications where space is limited and strict environmental reliability requirements are needed.
Superior construction, using materials that meet the strictest standards, ensure these subminiature switches provide excellent current switching capacity and constant low contact resistance. Rigorous inspection, testing requirements, and procedures ensure long life and high reliability.
The Cole series 1250 switch provides the ultimate mechanical and electrical reliability with its unique design.
Rotary Switches – 1800 Series
Ideal for applications the demand critical and challenging usage, the 1800 Series is rated at 25,000 operational cycles, is available with solder lug or printed circuit terminations, and meets or exceeds all applicable MIL-S-3786, style SR20 requirements.

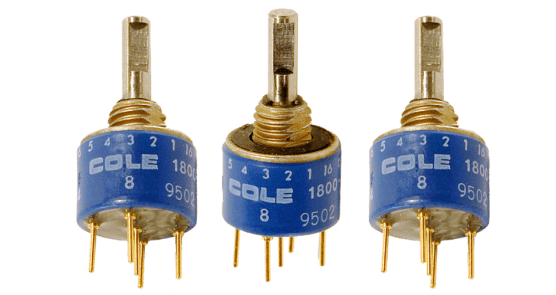

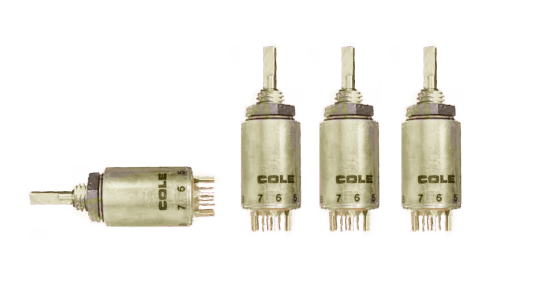

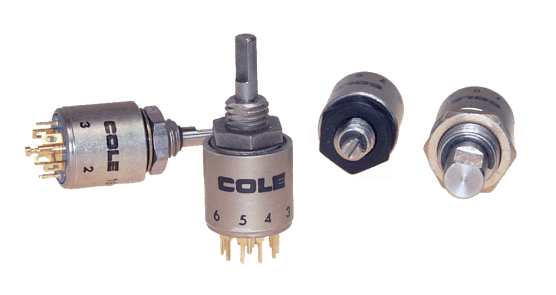

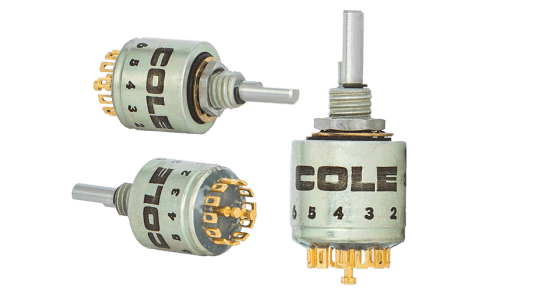

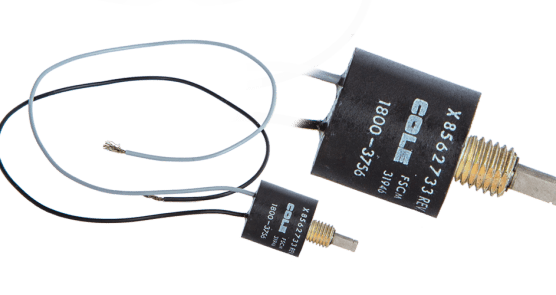

1800 Series – Standard
The ultimate in a one half-inch rotary selector switch, the Cole Series 1800 is engineered to meet or exceed applicable MIL-S-3786.
The Series 1800 enclosed switch was designed for critical ordnance applications, and demanding usage in aircraft, medical and industrial controls and instrumentation, as well as electronic equipment.
This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.
Continuous (Non-Switching) Current Capacity
Switching Current Capacity 28 VDC Resistive
Switching Current Capacity 115 VAC Resistive
Switching Current Capacity 28 VDC Inductive (2.8 H.)
Switching Current Capacity 28 VDC Lamp Load
Low Level Capable
Switching Life
Weight
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
The ultimate in a one half-inch rotary selector switch, the Cole Series 1800 is engineered to meet or exceed applicable MIL-S-3786, Style SR20 requirements. A QPL version is available as an option.
The Series 1800 enclosed switch was designed for critical ordnance applications, and demanding usage in aircraft, medical and industrial controls and instrumentation, as well as electronic equipment.
This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.
1800 Series – Condensed
Standard solder lug or printed circuit terminations. Its design renders the switch resistant to water, contaminants and most solvents.
This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
The ultimate in a one half-inch rotary selector switch, the Cole series 1800 is engineered to meet or exceed applicable MIL-S-3786, style SR20 requirements. A QPL version is also available.
The Series 1800 enclosed switch was designed for critical ordnance applications, and demanding usage in aircraft, medical and industrial controls and instrumentation, as well as electronic equipment.
This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.

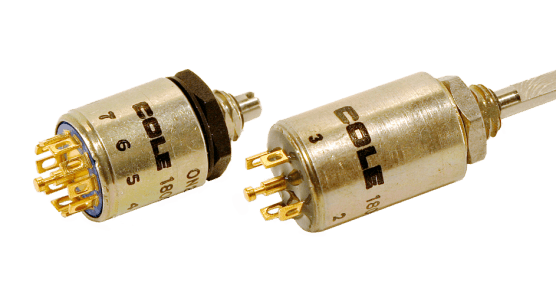

1800 Series – Push/Pull
Configured so that one or more positions cannot be contacted without pulling or pushing on the switch shaft, in addition to torquing.
Cole 1800 Series Push/Pull is configured such that one or more positions cannot be contacted without the user pulling or pushing on the switch shaft, in addition to torquing. The depth dimension of the Series 1800 increases 0.217 in., max. to accommodate the mechanism. All other switch dimensions remain the same as standard specification.
The switch specifier has the flexibility or ordering which position or combination of positions to be isolated. Cole Instrument then inserts isolation posts adjacent to the position or positions to be isolated.
For multi-pole configurations, the first pole isolation post and stop location will determine the isolation pattern for the additional poles.
The Series 1800 enclosed switch was designed for critical ordnance applications, and demanding usage in aircraft, medical and industrial controls and instrumentation, as well as electronic equipment. This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
Cole 1800 Series Push/Pull is configured such that one or more positions cannot be contacted without the user pulling or pushing on the switch shaft, in addition to torquing. The depth dimension of the Series 1800 increases 0.217 in., max. to accommodate the mechanism. All other switch dimensions remain the same as standard specification.
The switch specifier has the flexibility or ordering which position or combination of positions to be isolated. Cole Instrument then inserts isolation posts adjacent to the position or positions to be isolated.
For multi-pole configurations, the first pole isolation post and stop location will determine the isolation pattern for the additional poles.
The Series 1800 enclosed switch was designed for critical ordnance applications, and demanding usage in aircraft, medical and industrial controls and instrumentation, as well as electronic equipment. This switch is available with 1 pole, 2 to 10 positions, and 2 pole, 2 to 5 positions.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
Available in standard solder lug or printed circuit terminations, the Cole Series 1800 and its unique design renders the switch resistant to water, contaminants and most solvents.

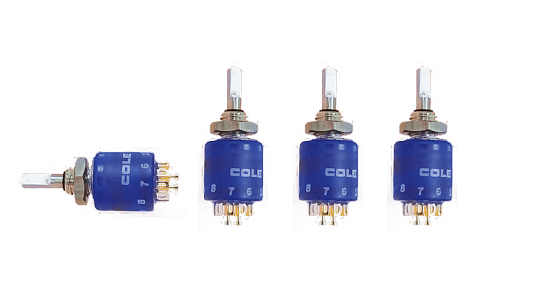

1800 Series – Commercial
The C1800 switch is perfect for high and low level switching, and meets or exceeds the requirements of MIL-S-3786.
The C1800 Series switch is designed with the same specifications and dimensions as our M1800 switch and offers the same level of performance, but COLE can provide the C1800 at a lower price by using the latest, state-of-the-art materials. The C1800 switch is perfect for high and low level switching, and meets or exceeds the requirements of MIL-S-3786 and has been tested per MIL-STD-202 as follows:
THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
MEDIUM SHOCK PER MIL-STD-202; METHOD 213
HIGH SHOCK PER MIL-STD-202; METHOD 207
MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
EXPLOSION PROOF PER MIL-STD-202; METHOD 109
SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 36, 45, 60, and 90 degree indexing with one or two poles (see Circuit Diagram). They include fixed and adjustable stops, sealed and unsealed styles, PC or solder lug terminals, RFI & EMI protection, and a .125″ or .250″ dia. shaft. The shafts are provided with either a single flat or a screwdriver slot, and are made from brass or stainless steel.
Unique design construction features include: all terminals on the rear, self-cleaning contacts for low level switching, and low contact resistance through the life of the switch (25,000 cycles min.). The detent mechanism provides smooth positive detent action and a mechanical life in excess of 50,000 cycles. In the C1800, the terminals and commons are molded in thermoset plastic and sealed with a special process to eliminate flux contaminants from seeping inside the switch during wave soldering and cleaning.
The C1800 switch is built in a clean-room atmosphere, as are all COLE products, to prevent contamination during assembly.
These and many other features will provide the ultimate in mechanical and electrical reliability, during the life of the switch.
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
Cole’s Series C1800 Style Rotary Switch is made to provide the mechanical and electrical reliability for instrumentation, medical equipment, aircraft, computers, industrial controls, communication, ordnance, as well as ground support electronic equipment, etc.
The C1800 Series switch is designed with the same specifications and dimensions as our M1800 switch and offers the same level of performance, but COLE can provide the C1800 at a lower price by using the latest, state-of-the-art materials. The C1800 switch is perfect for high and low level switching, and meets or exceeds the requirements of MIL-S-3786 and has been tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213
- HIGH SHOCK PER MIL-STD-202; METHOD 207
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 36, 45, 60, and 90 degree indexing with one or two poles (see Circuit Diagram). They include fixed and adjustable stops, sealed and unsealed styles, PC or solder lug terminals, RFI & EMI protection, and a .125″ or .250″ dia. shaft. The shafts are provided with either a single flat or a screwdriver slot, and are made from brass or stainless steel.
Unique design construction features include: all terminals on the rear, self-cleaning contacts for low level switching, and low contact resistance through the life of the switch (25,000 cycles min.). The detent mechanism provides smooth positive detent action and a mechanical life in excess of 50,000 cycles. In the C1800, the terminals and commons are molded in thermoset plastic and sealed with a special process to eliminate flux contaminants from seeping inside the switch during wave soldering and cleaning.
The C1800 switch is built in a clean-room atmosphere, as are all COLE products, to prevent contamination during assembly.
These and many other features will provide the ultimate in mechanical and electrical reliability, during the life of the switch.
1800 Series – Military
This M1800 Series switch is designed for high and low level switching, and is qualified to meet the requirements of MIL-S-3786/20.
This M1800 Series switch is designed for high and low level switching, and is qualified to meet the requirements of MIL-S-3786/20 and tested per MIL-STD-202 as follows:
THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
MEDIUM SHOCK PER MIL-STD-202; METHOD 213
HIGH SHOCK PER MIL-STD-202; METHOD 207
MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
EXPLOSION PROOF PER MIL-STD-202; METHOD 109
SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 36, 45, 60, and 90 degree indexing with one or two poles (see Circuit Diagram). They include fixed stops, sealed and unsealed styles, PC or solder lug terminals, RFI & EMI protection, and a .125″ or .250″ dia. shaft. The shaft is provided with either a single flat or a screwdriver slot.
Unique design construction features include: all terminals on the rear, self-cleaning contacts for low level switching, and low contact resistance through the life of the switch (25,000 cycles min.). The detent mechanism provides smooth positive detent action and a mechanical life in excess of 50,000 cycles. In the M1800, the terminals and commons are molded in diallyl phthalate thermosetting plastic. COLE seals the housing, plastic, terminals, and commons with a special process to eliminate flux contaminants from seeping inside the switch during wave soldering and cleaning.
The M1800 switch is built in a clean atmosphere, as are all COLE products, to prevent contamination during assembly.
These and many other features will provide the ultimate in mechanical and electrical reliability, during the life of the switch.
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
Cole’s Series M1800, Military Style Rotary Switch is designed to provide the ultimate mechanical and electrical reliability in instrumentation, medical equipment, aircraft, computers, communication, ordnance, as well as ground support electronic equipment.
This M1800 Series switch is designed for high and low level switching, and is qualified to meet the requirements of MIL-S-3786/20 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213
- HIGH SHOCK PER MIL-STD-202; METHOD 207
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 36, 45, 60, and 90 degree indexing with one or two poles (see Circuit Diagram). They include fixed stops, sealed and unsealed styles, PC or solder lug terminals, RFI & EMI protection, and a .125″ or .250″ dia. shaft. The shaft is provided with either a single flat or a screwdriver slot.
Unique design construction features include: all terminals on the rear, self-cleaning contacts for low level switching, and low contact resistance through the life of the switch (25,000 cycles min.). The detent mechanism provides smooth positive detent action and a mechanical life in excess of 50,000 cycles. In the M1800, the terminals and commons are molded in diallyl phthalate thermosetting plastic. COLE seals the housing, plastic, terminals, and commons with a special process to eliminate flux contaminants from seeping inside the switch during wave soldering and cleaning.
1800 Series – Encoded
One-half inch encoded switches for direct logic level interfacing derive from the MIL-S-3786, MIL-S-22710, SERIES 1800 rotary selector switches.
Unlike other switches being introduced, the COLE 1800 series encoded switches anticipate both high-rel use, and the essentially dry circuit conditions of extremely low current switching; they offer 25,000 minimum life cycle and gold contacts – not found on most comparable units.
The switch is available in 221/2, 30, 36 and 45 degree indexing, with or without adjustable stops.
Quality construction, including materials that meet the strictest standards, allows these subminiature switches to combine high current switching capacity with constant low contact resistance. Long life and high reliability are assured by exceedingly stringent inspection and testing procedures.
| Continuous (Non-Switching) Current Capacity |
1 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.125 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.125 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
11 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
CODES AVAILABLE
Hex, BCD, Octal, Reflected, and any Custom Code specified by the customer.
Cole’s series of one-half inch encoded switches for direct logic level interfacing derive from the MIL-S-3786, MIL-S-22710, SERIES 1800 rotary selector switches, and feature the same mechanical quality as that series. The hexadecimal switch is also available in BCD, Octal, and Reflected Gray code notation, standard. Custom user codes are available on request.
Unlike other switches being introduced, the COLE 1800 series encoded switches anticipate both high-rel use, and the essentially dry circuit conditions of extremely low current switching; they offer 25,000 minimum life cycle and gold contacts – not found on most comparable units.
The switch is available in 221/2, 30, 36 and 45 degree indexing, with or without adjustable stops.

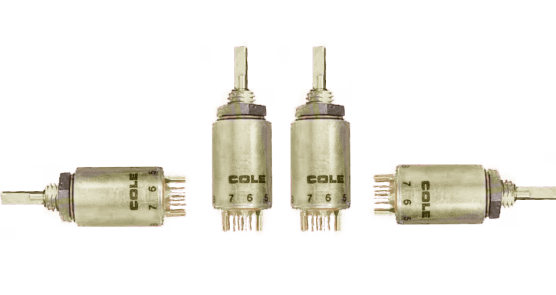

1800 Series – Spring Return
The SERIES 1800 spring return mechanism is available in switches with 36¡ indexing (10 positions max) and 45¡ indexing (8 positions max).
The SERIES 1800 spring return mechanism adds 0.160 inches to the behind panel length of the switch; all other dimensions remain unchanged.
The SERIES 1800 spring return mechanism is available in switches with 36¡ indexing (10 positions max) and 45¡ indexing (8 positions max).
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1 or 2 |
| 60° | 6 | 1 or 2 |
| 90° | 4 | 1 or 2 |
A 1800 Spring Return Rotary Switch has a spring return mechanism which allows for momentary positions. A momentary position is active only as long as the operator holds the knob in that position; when the operator releases the knob, a spring returns the switch back to an adjacent position. This prevents the switch from remaining in a certain position when the operator lets go of the knob. This feature is available throughout COLE’s rotary switch product lines.
The SERIES 1800 spring return mechanism adds 0.160 inches to the behind panel length of the switch; all other dimensions remain unchanged.
The SERIES 1800 spring return mechanism is available in switches with 36¡ indexing (10 positions max) and 45¡ indexing (8 positions max).
1830 Series
The ultimate in a 30° rotation single deck precision rotary switch unique circuit versatility in a .562 inch diameter.
The ultimate in a 30° rotation single deck precision rotary switch unique circuit versatility in a .562 inch diameter. Fully enclosed package, engineered to meet or exceed applicable MIL-S-3786, Style SR35, requirements; and it is available with either solder lug or printed circuit terminals.
Cole’s 1830 Series is designed for low level current (10 mA) @ (30 mV) DC or peak AC, as well as standard ratings. The 1830 Series utilizes state of the art materials, a unique ultra cleaning process, and is assembled in specially constructed positive-air-pressure room, therein providing the highest possible reliability requirements for critical and demanding applications in the aircraft, medical, electronic, ordnance, industrial and instrumentation markets.
This 1830 Series switch meets the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213.
- HIGH SHOCK PER MIL-STD-202; METHOD 207.
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Spring Return | Available |
| Push/Pull | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30º | 12 | 1 or 2 or 4 |
The ultimate in a 30° rotation single deck precision rotary switch unique circuit versatility in a .562 inch diameter. Fully enclosed package, engineered to meet or exceed applicable MIL-S-3786, Style SR35, requirements; and it is available with either solder lug or printed circuit terminals.
Cole’s 1830 Series is designed for low level current (10 mA) @ (30 mV) DC or peak AC, as well as standard ratings. The 1830 Series utilizes state of the art materials, a unique ultra cleaning process, and is assembled in specially constructed positive-air-pressure room, therein providing the highest possible reliability requirements for critical and demanding applications in the aircraft, medical, electronic, ordnance, industrial and instrumentation markets.
This 1830 Series switch meets the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213.
- HIGH SHOCK PER MIL-STD-202; METHOD 207.
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”

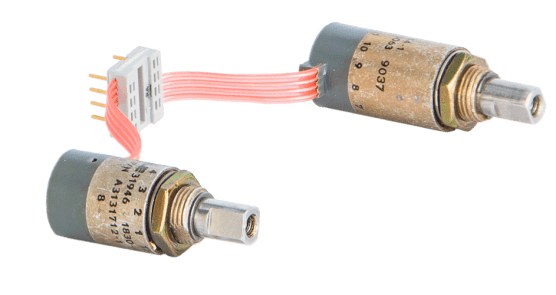

1830 Series – Coded
engineered to meet or exceed applicable MIL-S-3786, Style SR35, requirements; and it is available with either solder lug or printed circuit terminals.
The ultimate in a 30° rotation single deck precision rotary switch unique circuit versatility in a .562 inch diameter. Fully enclosed package, engineered to meet or exceed applicable MIL-S-3786, Style SR35, requirements; and it is available with either solder lug or printed circuit terminals.
Cole’s 1830 Series is designed for low level current (10 mA) @ (30 mV) DC or peak AC, as well as standard ratings. The 1830 Series utilizes state of the art materials, a unique ultra cleaning process, and is assembled in specially constructed clean room, therein providing the highest possible reliability requirements for critical and demanding applications in the aircraft, medical, electronic, ordnance, industrial and instrumentation markets.
This 1830 Series switch meets the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213.
- HIGH SHOCK PER MIL-STD-202; METHOD 207.
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.2 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
13 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| Immersion Tested | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Spring Return | Available |
| Push/Pull | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30º | 12 | 1 or 2 or 4 |
The ultimate in a 30° rotation single deck precision rotary switch unique circuit versatility in a .562 inch diameter. Fully enclosed package, engineered to meet or exceed applicable MIL-S-3786, Style SR35, requirements; and it is available with either solder lug or printed circuit terminals.
Cole’s 1830 Series is designed for low level current (10 mA) @ (30 mV) DC or peak AC, as well as standard ratings. The 1830 Series utilizes state of the art materials, a unique ultra cleaning process, and is assembled in specially constructed clean room, therein providing the highest possible reliability requirements for critical and demanding applications in the aircraft, medical, electronic, ordnance, industrial and instrumentation markets.
This 1830 Series switch meets the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213.
- HIGH SHOCK PER MIL-STD-202; METHOD 207.
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”

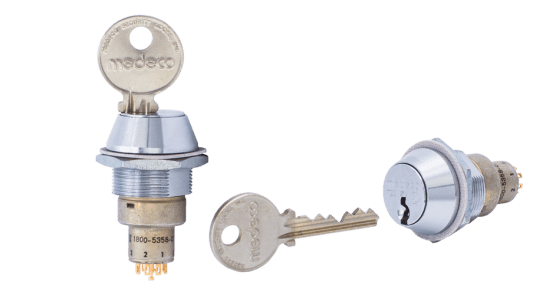

1845 Series – Spring Return Key Lock
The SRL1845 Series offers Economical Key Lock Switching, combined with the versatility of a multi-function switch. Highly reliable and that meets MIL-S-3786.
Cole Instrument provides a switch is highly reliable and that meets or surpasses the most stringent requirements of MIL-S-3786.
The lock is designed with the following features:
- Restricted factory-registered key system.
- Exclusive key assignment available on request.
- Versatile master-keying capability.
- Manufactured to precision quality standards by skilled craftsmen.
- Double “D” mounting.
The Cole Instrument Switch Lock was designed for critical applications and demanding usage in medical and industrial control and instrumentation, as well as ground support electronic equipment.
Rotary Switches – 2020 Series
Designed for critical ordnance applications, the 2020 Series is available with variable amplitude of 1 to 100 Gs, turret or solder lug terminals and “normally opened” or “normally closed” contacts.

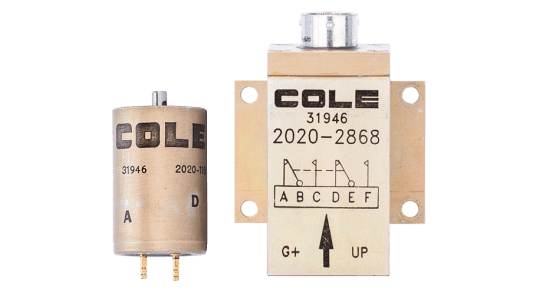

2020 Series – Inertia Switch
The Series 2020 inertia switches were designed for critical ordnance applications, missile arming, wing deployment and detonation on impact.
The ultimate in an inertia switch, the Cole Series 2020 is engineered to meet or exceed the customer applications.
The Series 2020 inertia switches were designed for critical ordnance applications, missile arming, wing deployment and detonation on impact.
The switch is available with one pole and with variable amplitude of 1 to 100 Gs.
Quality construction, including materials that meet the strictest standards, allows these inertia switches to combine high current capacity with constant low contact resistance. High reliability is assured by exceedingly stringent inspection and testing procedures.
The Cole Series 2020 switches are available with turret or solder lug terminals and with Normally Opened (N.O) or Normally Closed (N.C.) contacts. The 2020 Series switches are reset-able for testing.
The COLE Series 2020 switches construction provides the ultimate mechanical and electrical reliability with their unique design.
| ontinuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
0.25 Amps
|
| Switching Current Capacity 115 VAC Resistive |
0.15 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.03 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.1 Amps
|
| G-Force |
1 to 100 Gs
|
| Contact Surfaces |
Gold Plated
|
The ultimate in an inertia switch, the Cole Series 2020 is engineered to meet or exceed the customer applications.
The Series 2020 inertia switches were designed for critical ordnance applications, missile arming, wing deployment and detonation on impact.
The switch is available with one pole and with variable amplitude of 1 to 100 Gs.
Quality construction, including materials that meet the strictest standards, allows these inertia switches to combine high current capacity with constant low contact resistance. High reliability is assured by exceedingly stringent inspection and testing procedures.
The Cole Series 2020 switches are available with turret or solder lug terminals and with Normally Opened (N.O) or Normally Closed (N.C.) contacts. The 2020 Series switches are reset-able for testing.
The COLE Series 2020 switches construction provides the ultimate mechanical and electrical reliability with their unique design.
Rotary Switches – 3600 Series
Cole Instrument offers other styles which include: spring return (momentary), add-a- pot, snap action switch, concentric shaft, push and pull to turn switches.
All of the switches can include combinations of shorting and non-shorting contacts, extended through bolts for rear mounting and sealed enclosures with switches pre-wired to connectors. For switches that incorporate these, and other features, contact the factory with your special requirements.
3600 Series – Standard
Designed for aircraft, military use and demanding commercial applications in industrial controls, electronic equipment and medical instrumentation.
Quality construction features include self-cleaning roller bearing contacts for high current carrying capacity and pure silver contact surfaces for constant low contact resistance. Hardened steel sprockets and ball bearing detent mechanisms provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. Diallyl phthalate thermosetting plastic is used in the molded stators and rotors to provide the ultimate in mechanical and electrical properties.
In addition to the commercial version, a full QTL’d MIL switch is available.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |
IS3600 Series – Illuminated
Designed for aircraft, military use and demanding commercial applications in industrial controls, electronic equipment and medical instrumentation.
Quality construction features include self-cleaning roller bearing contacts for high current carrying capacity and pure silver contact surfaces for constant low contact resistance. Hardened steel sprockets and ball bearing detent mechanisms provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. Diallyl phthalate thermosetting plastic is used in the molded stators and rotors to provide the ultimate in mechanical and electrical properties.
In addition to the commercial version, a full QTL’d MIL switch is available.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |
3600 Series – Keylock
Combines the versatility of a multi-function switch with the high security of the Medeco cylinder. The KL3600 Series offers many configuration options.
Like all Cole Instrument Switches, it is a high reliability switch that meets or surpasses the most stringent requirements of MIL-S-3786.
The Medeco lock is designed to resist drilling and wrenching. The cylinder offers the ultimate in pick resistance and resistance to other forms of physical attack.
Other features include:
- Restricted factory-registered key system with exclusive key assignment available on request.
- Versatile master-keying capability.
- Manufactured to precision quality standards by skilled craftsmen.
- Double “D” mounting.
The Cole Instrument switch lock was designed for critical and high security applications and demanding usage in aircraft, weapons, medical and industrial control and instrumentation, as well as ground support electronic equipment.
3600 Series – Push/Pull
Cole 3600 Series Push/Pull is configured such that one or more positions can not be contacted without the user pulling or pushing on the switch shaft.
The switch specifier has the flexibility or ordering which position or combination of positions to be isolated. Cole Instrument then inserts isolation posts adjacent to the position or positions to be isolated.
For multi-pole configurations, the first pole isolation post and stop location will determine the isolation pattern for the additional poles.
Cole’s Series 3600 one-inch diameter rotary switches are designed for aircraft, military use and demanding commercial applications in industrial controls, electronic test equipment and medical instrumentation.
Quality construction features include self-cleaning roller bearing contacts for high current carrying capacity and pure silver contact surfaces for constant low contact resistance. Hardened steel sprockets and ball bearing detent mechanisms provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. Diallyl phthalate thermosetting plastic is used in the molded stators and rotors to provide the ultimate in mechanical and electrical properties.
In addition to the commercial version, a full QTL’d MIL switch is available.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |

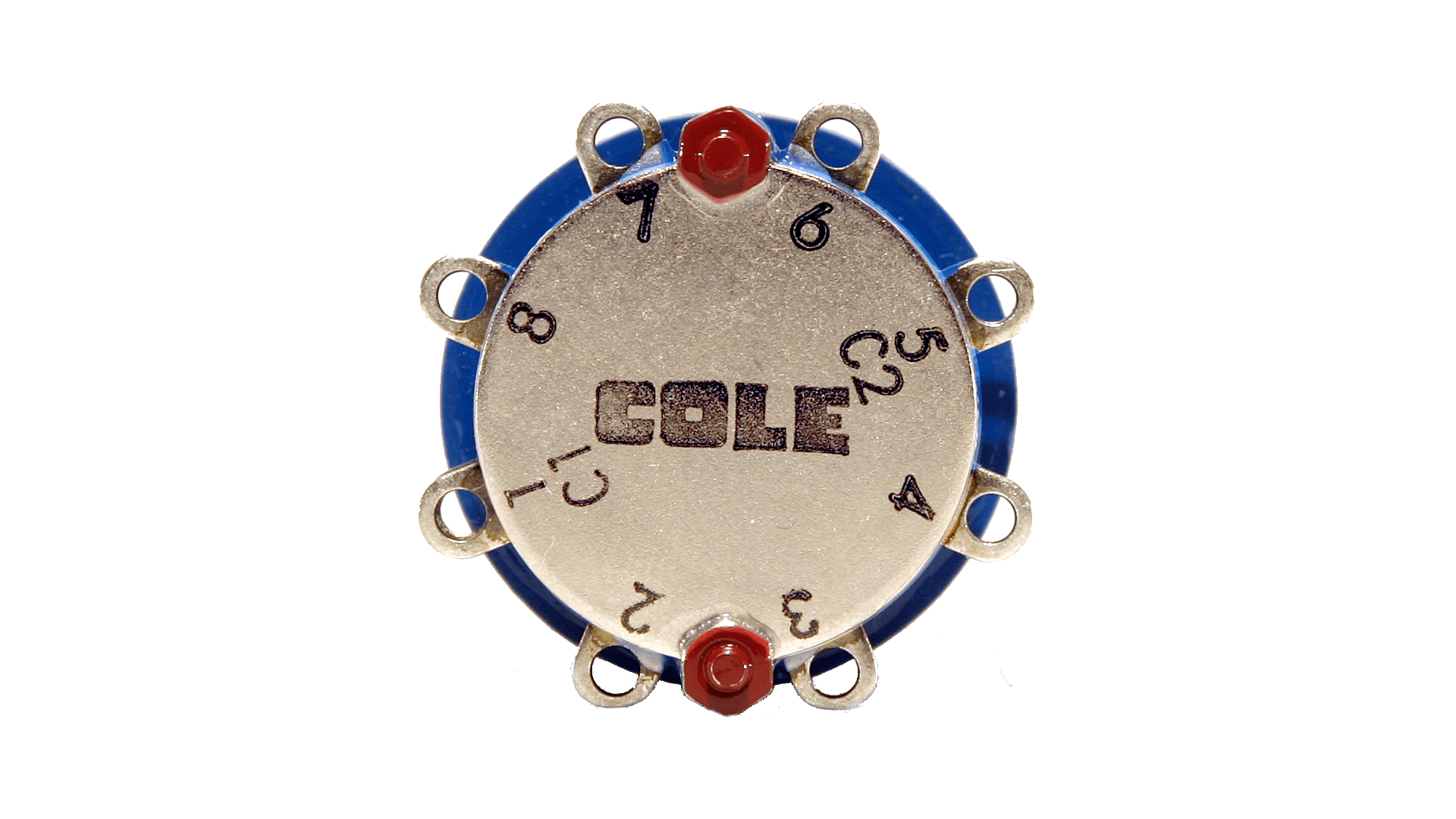

3600 Series – Spring Return
Requires that manual torque be maintained at the desired switch position; releasing allows the spring to return to a normal, or detent position.
Cole’s Series 3600 Spring Return rotary switch requires that manual torque be maintained at the desired switch position; releasing the force allows the spring to return the wiper to a normal, or detent position.
Spring return configurations of the 3600 Series are available in 30°, 36°, 45° indexing and one to six poles per deck.
Cole’s Series 3600 one-inch diameter rotary switches are designed for aircraft, military use and demanding commercial applications in industrial controls, electronic test equipment and medical instrumentation.
Quality construction features include self-cleaning roller bearing contacts for high current carrying capacity and pure silver contact surfaces for constant low contact resistance. Hardened steel sprockets and ball bearing detent mechanisms provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. Diallyl phthalate thermosetting plastic is used in the molded stators and rotors to provide the ultimate in mechanical and electrical properties.
In addition to the commercial version, a full QTL’d MIL switch is available.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
15,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |
3600 Series – Special Switches
We offer other styles custom which include: spring return (momentary), add-a- pot, snap action switch, concentric shaft, push and pull to turn switch.
S3600 – Add A Pot Switch
Cole Instrument offers other styles which include: spring return (momentary), add-a- pot, snap action switch, concentric shaft, push and pull to turn switches.
All of the above switches can include combinations of shorting and non-shorting contacts, extended through bolts for rear mounting and sealed enclosures with switches pre-wired to connectors. For switches that incorporate these, and other features, contact the factory with your special requirements.
S3600 – Snap Action Switch
Cole Instrument offers other styles which include: spring return (momentary), add-a- pot, snap action switch, concentric shaft, push and pull to turn switches.
All of the above switches can include combinations of shorting and non-shorting contacts, extended through bolts for rear mounting and sealed enclosures with switches pre-wired to connectors. For switches that incorporate these, and other features, contact the factory with your special requirements.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |
3600 Series – Tease Proof
Cole’s Series 3600 Tease Proof prevents intentional or unintentional partial rotation of the contacts between positions, after removal of operating torque.
These switches are available with 30°, 36°, 45°, 60° & 90° indexing and one to six poles per deck.
Cole’s Series 3600 one-inch diameter rotary switches are designed for aircraft, military use and demanding commercial applications in industrial controls, electronic test equipment and medical instrumentation.
Quality construction features include self-cleaning roller bearing contacts for high current carrying capacity and pure silver contact surfaces for constant low contact resistance. Hardened steel sprockets and ball bearing detent mechanisms provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. Diallyl phthalate thermosetting plastic is used in the molded stators and rotors to provide the ultimate in mechanical and electrical properties.
In addition to the commercial version, a full QTL’d MIL switch is available.
| Continuous (Non-Switching) Current Capacity |
10 Amps
|
| Switching Current Capacity 28 VDC Resistive |
6 Amps
|
| Switching Current Capacity 115 VAC Resistive |
6 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
3 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
48 grams
|
| Contact Surfaces | Silver Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |
Rotary Switches – 3900 Series
The 3900 series is designed for high and low level switching, tested per MIL-STD-202, and meets or exceeds the requirements of MIL-S-3786. Providing the ultimate mechanical and electrical reliability, the 3900 series is ideal for commercial, medical, and military applications.

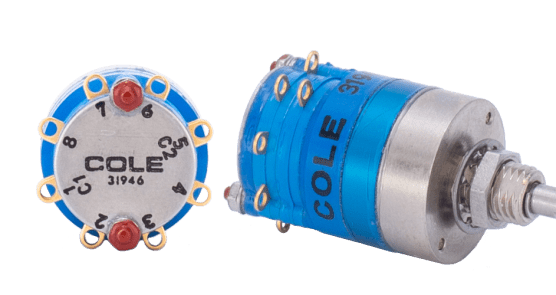

IS3900 Series – Illuminated
The Series IS3900 switch offers maximum and optimum visibility at sunlight with minimum power levels. And at night, there is zero light leakage.
The Series IS3900 switch offers maximum and optimum visibility at sunlight with minimum power levels. And at night, there is zero light leakage through the length of the switch. Light can meet most chromaticity or intensity requirements. The light can be an LED or a T1 incandescent lamp.
The switch features good heat sinking capabilities, and delivers up to twice the light intensity of units at equivalent power levels. On light failure, reclamping can be done by the customer.
Cole can provide the replacement assembly. This switch can be used in airborne, shipboard, and submarine panel control displays and meets the brightness requirements of high altitude aircraft, as well as the MIL-S-901C shock requirement for submarines and ships.
| Continuous (Non-Switching) Current Capacity |
5 Amps
|
| Switching Current Capacity 28 VDC Resistive |
1 Amps
|
| Switching Current Capacity 115 VAC Resistive |
1 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.5 Amps
|
| Low Level Capable | YES |
| Switching Life |
25,000 cycles
|
| Weight |
15 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Shaft Seal | Available |
| Panel Seal | Available |
LED SPECIFICATIONS
| Hewlett Packard P/N | HLMA-KH00 |
| Current | 20 mA |
| Voltage | 2.4 VDC |
| Brightness | 200 MCD Typ. (35 min) |
| Wave Length | 615 mm |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |

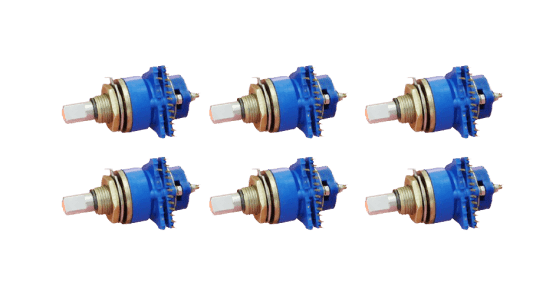

IP3900 Series – Illuminated Shaft
The Series IP3900 switch offers maximum and optimum visibility at sunlight with minimum power levels. Can meet most chromaticity requirements.
Cole Instrument Corporation is proud to offer a rotary switch with illumination through the end of the shaft front. This can be used to light up any part of the rotary switch’s knob. An LED (Light Emitting Diode) or an incandescent lamp is on the back end of the switch body, and a light pipe or fiber optics brings the concentrated light through the switch to the shaft front.
The Series IP3900 switch offers maximum and optimum visibility at sunlight with minimum power levels. And at night, there is zero light leakage through the length of the switch. Light can meet most chromaticity or intensity requirements.
The light can be an LED or a T1 incandescent lamp. The switch features good heat sinking capabilities, and delivers up to twice the light intensity of units at equivalent power levels. On light failure, reclamping can be done by the customer. Cole can provide the replacement assembly.
This switch can be used in airborne, shipboard, and submarine panel control displays and meets the brightness requirements of high altitude aircraft, as well as the MIL-S-901C shock requirement for submarines and ships.
| Continuous (Non-Switching) Current Capacity |
5 Amps
|
| Switching Current Capacity 28 VDC Resistive |
1 Amps
|
| Switching Current Capacity 115 VAC Resistive |
1 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.5 Amps
|
| Low Level Capable | YES |
| Switching Life |
25,000 cycles
|
| Weight |
15 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Shaft Seal | Available |
| Panel Seal | Available |
LED SPECIFICATIONS
| Hewlett Packard P/N | HLMA-KH00 |
| Current | 20 mA |
| Voltage | 2.4 VDC |
| Brightness | 200 MCD Typ. (35 min) |
| Wave Length | 615 mm |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |

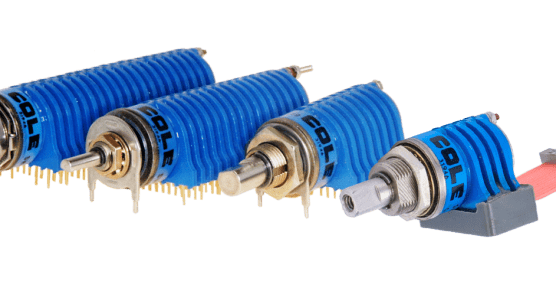

P3900 Series – PC Termination
The Cole miniature P.C. termination rotary switch is designed to provide the ultimate mechanical and electrical reliability for all applications.
Cole’s Series P3900, miniature P.C. termination rotary switch is designed to provide the ultimate mechanical and electrical reliability in instrumentation, industrial controls, medical equipment, aircraft, computers, communication, weapons, as well as ground support electronic equipment.
This P3900 Series switch is designed for high and low level switching, and to meet the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213
- HIGH SHOCK PER MIL-STD-202; METHOD 207
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 30, 36, and 45 degree indexing and one to six poles per deck, (see Circuit Diagram).
Unique design construction features include: all terminals on one side, self-cleaning contacts for low level switching and low contact resistance through the life of the switch (25,000 cycles min).
Hardened steel sprocket and ball bearing detent mechanism provide smooth positive detent action and a mechanical life in excess of 100,000 cycles. In the P3900, the terminals and commons are molded in diallyl phthalate thermosetting plastic sealed between decks and between the plastic and the metal terminal with a special process to eliminate flux contamination seeping inside the switch during wave soldering and/or cleaning processes.
Rotors and non-shorting rings are molded of thermo-plastic glass filled to eliminate contamination by transferring plastic particles to the contact system during the life of the switch. The P3900 switch is built in a clean atmosphere, as are all Cole products, to prevent introduction of contaminants during assembly.
These and many other quality features will provide the ultimate in mechanical and electrical reliability, during the life of the switch.
| Continuous (Non-Switching) Current Capacity |
5 Amps
|
| Switching Current Capacity 28 VDC Resistive |
1 Amps
|
| Switching Current Capacity 115 VAC Resistive |
1 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.5 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.5 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
21 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |

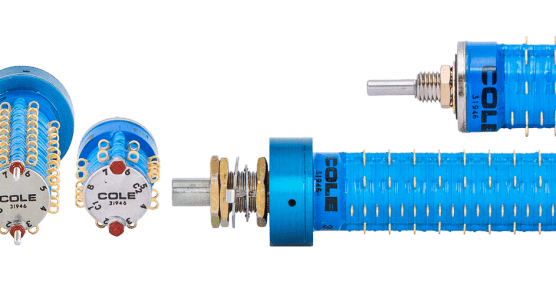

S3900 Series – Solder Lug
This S3900 Series switch is designed for high and low level switching, and to meet the requirements of MIL-S-3786 and tested per MIL-STD-202.
Cole’s Series S3900, miniature solder lug rotary switch is designed to provide the ultimate mechanical and electrical reliability in instrumentation, industrial controls, medical equipment, aircraft, communication, weapons, as well as ground support electronic equipment.
This S3900 Series switch is designed for high and low level switching, and to meet the requirements of MIL-S-3786 and tested per MIL-STD-202 as follows:
- THERMAL SHOCK PER MIL-STD-202; METHOD 107, TEST CONDITION “B”
- VIBRATION PER MIL-STD-202; METHOD 204, TEST CONDITION “B”
- MEDIUM SHOCK PER MIL-STD-202; METHOD 213
- HIGH SHOCK PER MIL-STD-202; METHOD 207
- MOISTURE RESISTANCE PER MIL-STD-202; METHOD 106
- EXPLOSION PROOF PER MIL-STD-202; METHOD 109
- SALT SPRAY PER MIL-STD-202; METHOD 101, CONDITION “B”
The switches are available with 30, 36, 45, 60, and 90 degree indexing and one to six poles per deck, (see Circuit Diagram).
Unique design construction features include: self-cleaning contacts for low level switching and low contact resistance through the life of the switch (25,000 cycles min). Hardened steel sprocket and ball bearing detent mechanism provide smooth positive detent action and a mechanical life in excess of 100,000 cycles.
In the S3900, the terminals and commons are molded in diallyl phthalate thermosetting plastic sealed between the plastic and the metal terminal with a special process to eliminate flux contamination seeping inside the switch during soldering and/or cleaning processes.
Rotors and non-shorting rings are molded of thermo-plastic glass filled to eliminate contamination by transferring plastic particles to the contact system during the life of the switch. The S3900 switch is built in a clean atmosphere, as are all Cole products, to prevent introduction of contaminants during assembly.
These and many other quality features will provide the ultimate in mechanical and electrical reliability, during the life of the switch.
| Continuous (Non-Switching) Current Capacity |
6 Amps
|
| Switching Current Capacity 28 VDC Resistive |
1 Amps
|
| Switching Current Capacity 115 VAC Resistive |
1 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
0.5 Amps
|
| Switching Current Capacity 28 VDC Lamp Load |
0.5 Amps
|
| Low Level Capable |
YES
|
| Switching Life |
25,000 cycles
|
| Weight |
14 grams
|
| Contact Surfaces | Gold Plated |
| Vibration Tested | YES |
| High Impact Shock Tested | YES |
| Moisture Resistant | YES |
| Salt Spray Resistant | YES |
| Explosion Proof | YES |
| RFI/EMI Tested | YES |
| Screwdriver Slot | Available |
| Shaft Seal | Available |
| Panel Seal | Available |
| Degrees | Max. Positions | Poles Available |
| 30° | 12 | 1, 2, 3, 4 or 6 |
| 36° | 10 | 1 or 2 |
| 45° | 8 | 1, 2 or 4 |
| 60° | 6 | 1, 2 or 3 |
| 90° | 4 | 1 or 2 |

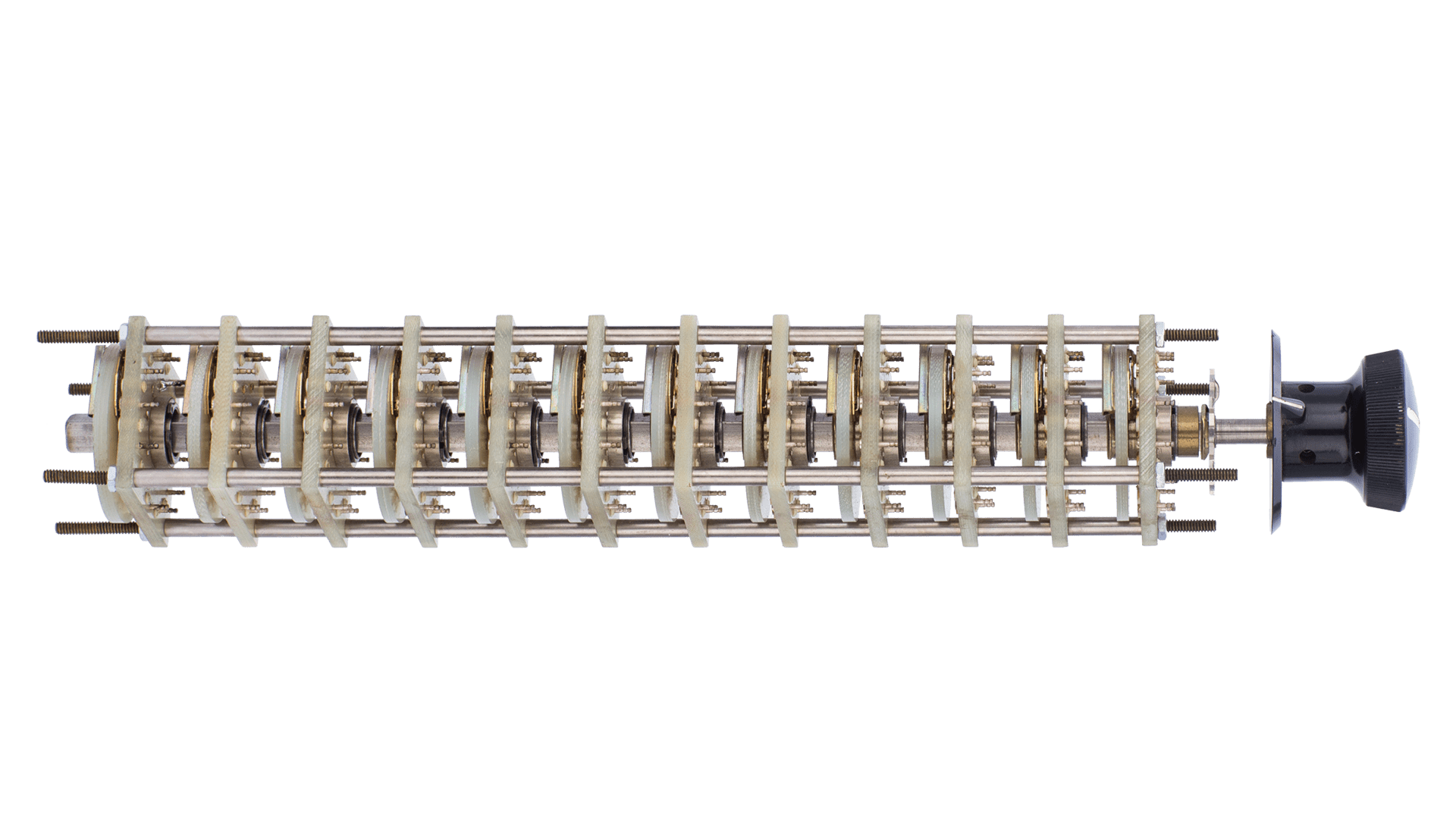

Open Frame Series
Cole’s Open Frame Instrument Quality Rotary Switches provide low contact resistance (.005W), very high contact reliability (a bifurcated brush means 100% redundancy to avoid contact failure), smooth action with positive positioning, precision design, and trouble-free construction of glass epoxy insulators and silver conductors.
Open Frame Series
Cole’s Open Frame Instrument Rotary Switch are Uniquely capable for High Voltage, High Current, and Low Resistance applications.
Cole’s Open Frame Instrument Quality Rotary Switches provide low contact resistance (.005W), very high contact reliability (a bifurcated brush means 100% redundancey to avoid contact failure), smooth action with positive positioning, precision design, and trouble-free construction of glass epoxy insulators and silver conductors.
Designed and manufactured to meet or exceed applicable sections of Military Specifications:
- MIL S 3786
- MIL T 945 QQ-P416
- MIL S 13282
- MIL STD 202
- MIL A 8625
- MIL STD 167
All Open Frame Series Switches are available pre-wired to terminal boards. When ordering, specify the locations of terminal boards as viewed from shaft ends such as: (top) or (left and top) (left, top and right) or terminal boards can be mounted on all four sides of each deck. Switches can be furnished pre-wired to connectors mounted in same manner.
Cole’s Open Frame Instrument Rotary Switch are Uniquely capable for High Voltage, High Current, and Low Resistance applications. The dielectric and conductive materials used are such that the switch performs like a high quality conductive wire between the pole and the contact when the switch is in position. The switch is rated for 100,000 cycles minimum. The contact mechanism is a bifurcated brush making it 100% redundant, for reliability in demanding switching conditions.
The Cole Open Frame Rotary Switch can be used on Electrical Test Equipment such as Low Voltage Signal Testing or Solid State Testing to eliminated transients. The switch can provide power to generators, receivers, transmitters, etc.
Multiple decks can be used to provide binary coded output.
| Continuous (Non-Switching) Current Capacity |
15 Amps
|
| Switching Current Capacity 28 VDC Resistive |
5 Amps
|
| Switching Current Capacity 115 VAC Resistive |
5 Amps
|
| Switching Current Capacity 28 VDC Inductive (2.8 H.) |
3 Amps
|
| Low Level Capable | YES |
| Switching Life |
25,000 cycles
|
| Weight |
140 grams
|
| Contact Surfaces | Pure, Solid Silver |
| Vibration Tested | YES |
| Medium Impact Shock Tested | YES |
| RFI/EMI Tested | YES |
| Degrees | Max. Positions | Poles Available |
| 5.675° | 64 | 1, 2 or 4 |
| 6° | 60 | 1, 2, 3, 4 or 5 |
| 7.2º | 50 | 1, 2, 3 or 4 |
| 7.5° | 48 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 9° | 40 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 10º | 36 | 1, 2, 3, 4, 5 or 6 |
| 11.25º | 32 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 12° | 30 | 1, 2, 3 or 4 |
| 14.4° | 25 | 1, 2, 3 or 4 |
| 15° | 24 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 18° | 20 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 20º | 18 | 1, 2, 3, 4, 5 or 6 |
| 22.5° | 16 | 1, 2, 3, 4, 5, 6, 7 or 8 |
| 30° | 12 | 1, 2, 3, 4, 5, 6, 7 or 8 |
