Specifications

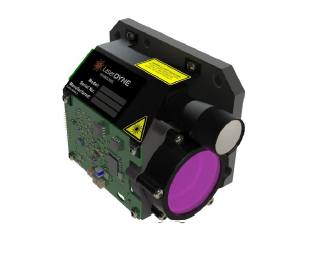

The RangePRO Model LRF-9698 is a compact, low mass OEM diode-pumped laser rangefinder module.
All assemblies are integrated onto a precision bore-sighted open-frame platform.

It integrates with host systems such as weapon, sensing, or surveillance and tracking stations, and thermal imaging cameras.
The standard communication interface is RS-422.

  • High clutter environments (terrestrial);
  • Suitable for (for example):
    • Counter-UAV applications
    • Remote weapon stations;
    • Observation and surveillance systems

Read-out limits (factory selectable)

Minimum 50
Maximum  20,000

Performance*

vehicle (2.3×2.3m)** > 8,00
building (large)** > 10,000

*Standard Clear atmosphere; Extinction Coefficient 0.0448 km-1 @ 1,570nm (Modtran 3)
(Beta Spec.); sea level visibility = 23.5km.

** Target albedo = 0.3 @ 1,570nm.

  • Open Frame

  • Class 1 eyesafe***
  • ***AS/NZS IEC 60825.1 2014.

Length 92.1mm
Width 60.9mm
Height  45mm
Mass 0.226kg

Laser type Pulsed solid state laser
Wavelength 1,530 to 1,570 nm
Output 300 uJ per pulse
Ranging rate  60 – 300 Range /min

  • Avalanche photo diode (APD) with time variant gain

• Signals from the detector are digitally sampled and examined to determine all potential real target returns. An adaptive range threshold compensates for changing noise levels, maximising system capability under varying conditions.

  • 10 to 15Vdc input

  • RS-422 19,200 Baud

    four clearance slots; one pin hole

PIN InGaAs detector
