OEM module for integration into sensing,
surveillance, tracking & weapons stations,
and thermal imaging camera & gimbals.
OEM module for integration into sensing,
surveillance, tracking & weapons stations,
and thermal imaging cameras & gimbals
OEM module for integration into sensing,
surveillance, tracking & weapons stations
OEM module for integration into sensing,
surveillance, tracking & weapons stations
OEM module for integration into sensing,
surveillance, tracking & weapons stations
OEM module for integration into sensing,
surveillance, tracking & weapons stations
and thermal imaging camera & gimbals
OEM module for integration into sensing,
surveillance, tracking & weapons stations,
and thermal imaging camera & gimbals.
A compact, low mass OEM diode-pumped LRF
module. All assemblies are integrated onto a
precision bore-sighted open-frame platform
Selection Chart – Ranging Rate
| Range Class (KM) | Single Shot | To 1Hz | To 1Hz | To 5Hz | To 10Hz | To 20Hz | To 30Hz |
|---|---|---|---|---|---|---|---|
| 2-5 | |||||||
| 5-10 | L5LGH | ||||||
| 10 | HPCL-10KO | ||||||
| 10-20 | LRF-64XX | ||||||
| 20 | L-GM5 | ||||||
| 20-30 | L-GM20 | L-NAV30K | |||||
| Type | Compact | Compact | Medium / Stand Alone | OEM Compact | Medium / Stand Alone | Medium / Stand Alone | Medium / Stand Alone |
Note: typically Range Class is based on small to medium targets, longer ranges are achieved for larger targets (see specifications). Repetition rates are subject to duty cycles.
Selection Chart – Model List
| Model | Type | Size | Range Class (KM) | Ranging Rate | Other |
|---|---|---|---|---|---|
| HPCL-10KO | OEM Module | Compact | 10 | Single Shot | |
| L5LGH | OEM Module | Compact | 5-10 | Single Shot | Reference Laser |
| LRF-3633 | OEM Module | Compact | 10 | Single Shot | |
| LRF-64XX | OEM Module | Compact | 10-20 | To 1Hz | |
| L-GM5 | OEM Module | Medium to Stand-Alone | 20 | To 10Hz | Sighting Scope & Reference Laser |

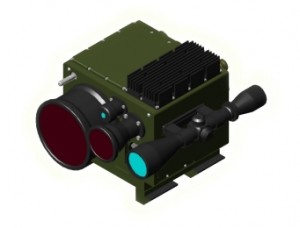

| L-GM20 | OEM Module | Medium to Stand-Alone | 20-30 | To 20Hz | Sighting Scope & Reference Laser |

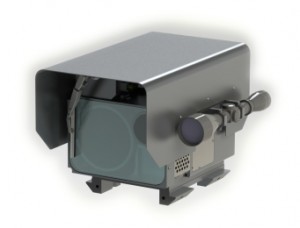

| L-NAV30K | OEM Module | Medium to Stand-Alone | 20-30 | To 30Hz | Sighting Scope & Reference Laser |
