Rugged connector design: IPP & Delta’s Gang Mount Solution
Manage and avoid any mismatching

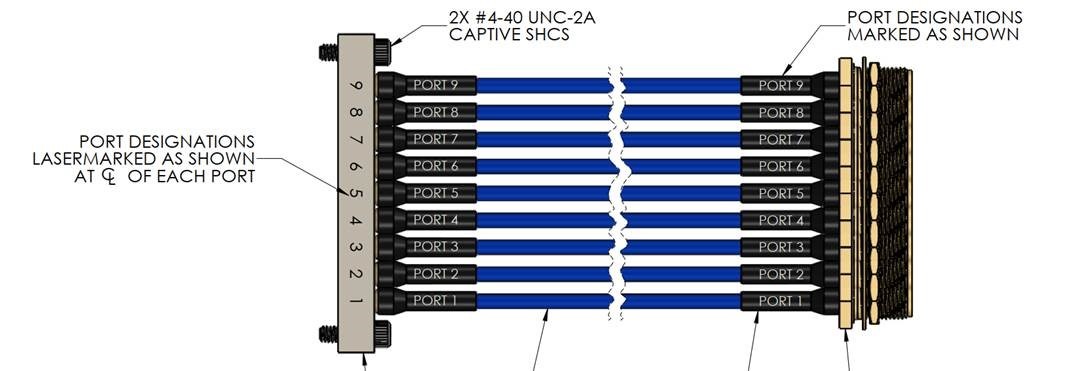

For one of our valued customers, IPP developed a customized 9-port Smooth Bore Edge Mount connector with a mating connector assembled via flex cable to an SMA bulkhead connector.
This single, rugged design met all of the customer’s system requirements—an improvement over their initial industrial solution, which fell short of specifications.
Our solution also minimized the risk of mismatching: labels on the shrink sleeves ensured proper assembly, and keying the SMA connectors was considered for added security.
Additionally, while their original design was frequency-limited, our connector covers the full range, up to 18 GHz.

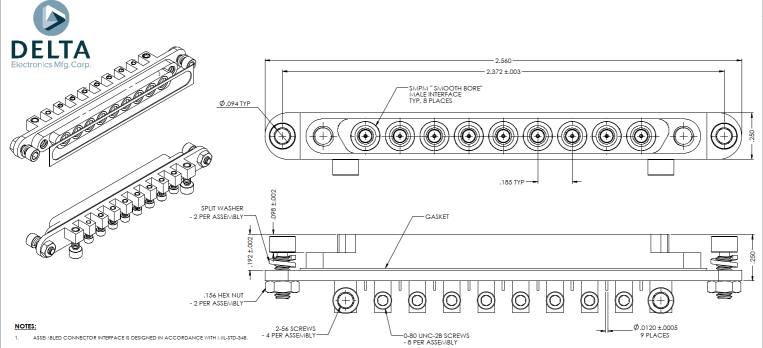

With Delta’s gang-mount solutions, you get a high-density connector option for the most demanding applications.
Available in SMP, SMPM, and SMP3 variants, these connectors deliver:
🛰️ Blind-mate ready: Perfect for cable-to-board, cable-to-cable, and board-to-board connections.
🛰️ Standardized options: 2–8 port housings to fit your design needs.
🛰️ Flexible mounting: Female cable, male cable, male PCB edge mount, and vertical launch configurations, with straight or right-angle SMPM-G connectors.
🛰️ Keyed & labeled: Prevents mis-mating, with laser-marked ports for easy identification.
🛰️ Weatherproof: Gasketed housings for extreme environmental conditions.
🛰️ Cable versatility: Supports .047″ and .086″ semi-rigid and flexible cables; custom designs available.
🛰️ High-frequency performance: Straight cable mounts up to 65 GHz, right-angle up to 26.5 GHz, and PCB mounts up to 40 GHz.
🛰️ Standards compliant: Meets Mil-STD-348 dimensions, ensuring reliable blind-mate performance with axial and radial float.
Let us know how we can help you with your challenges? We are ready to support you and get you what you need.
